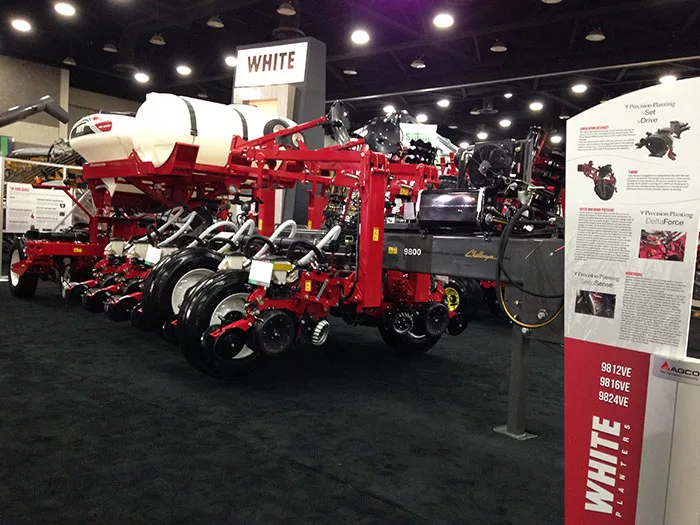

The 9800VE Series planters are the result of AGCO’s latest investment in planting technology available from Precision Planting. The planters feature a new seed meter, electronic drive, automated downforce plus monitoring and data management technologies.

“Researchers continue to learn and quantify the yield benefits of accurate seed placement. With that understanding, our customers are demanding technology that will allow them to capture the full yield potential of every seed planted,” says Conor Bergin, tactical marketing manager, Application, Seeding and Tillage. “The 9800VE Series planters are equipped to do just that, in addition to providing the long-lasting durability and simple maintenance and operation White Planters has provided for more than 40 years.”

The 9800VE Series row-crop planters are available with a full range of options and attachments and may be configured to fit any production system. The Series offers three models with 30-inch row spacing in 12-row, 16-row and 24-row configurations: the 9812VE-30, the 9816VE-30 and 9824VE-30. The planters are built upon three-section frames that flex 21 degrees up or down at each wing for consistent planting depth across irregular terrain and that fold for convenient movement from field to field.

vSet Meter

This meter features a flat disk with a single vac setting and a floating, 5-lobed singulator that makes sure no two seeds of any kind can occupy the same hole. It handles virtually any seed size or shape with a minimal amount of tweaks to vac pressure, disk or singulator settings and delivers nearly 100 percent accuracy.

DeltaForce Hydraulic Downforce

DeltaForce hydraulic downforce control matches field conditions on-the-go to provide consistent seed depth placement for each individual row. The downforce of each row unit is adjusted automatically to minimize soil compaction or prevent shallow placement, for a seed environment that delivers uniform emergence leading to maximum yield. It compensates for soil variation caused by wheel tracks, changes in soil type, soil moisture and varying amounts of crop residue across the field.

 vDrive Electronic Drive

The vDrive electronic drive system on 9800VE Series planters allows row-by-row control of the vSet seed meters so they adjust independently around headland curves. This precise control ensures the desired population is planted, saving seed and ensuring equidistant plant spacing for optimum yields. In addition, the vDrive allows prescription planting that matches plant population to the soil’s yield potential as well as row shut off to prevent over planting of point rows and end rows. The vDrive is self-contained and virtually maintenance free compared to traditional mechanical systems with sprockets, drive chains and bearings.

20/20 SeedSense Monitor

White Planter’s 9800 are equipped with the fully integrated SeedSense monitor which tracks population, speed, skips, doubles, row unit ride, down force and ground contact on the go. The information is immediately displayed on a color screen, allowing the operator to make adjustments needed to seed precisely, maintain depth, avoid compaction and troubleshoot mechanical problems.

Optional FieldView Data Collection and Mapping

FieldView data collection and mapping is an iPad-based solution to real-time, high definition mapping and data collection. It integrates seamlessly with SeedSense and is available as a factory-installed option. With data captured through SeedSense, producers can see exactly what the planter is doing in real time and save the data to use for future decision making.

As with other planters in the Series, the White Planters 9800VE series planters may be equipped to fit the needs of nearly any production system. For full details about the new White Planters 9800VE Series, visit www.agcocorp.com.
